If you want plenty of heating but only have a small space to fit a gas fire, the Compact 2 is the fire for you.
The Rinnai Compact 2 has been designed to get into those tighter spaces, whether it's an existing masonry chimney or a smaller living room. It's easy to retrofit and looks terrific.
Key features

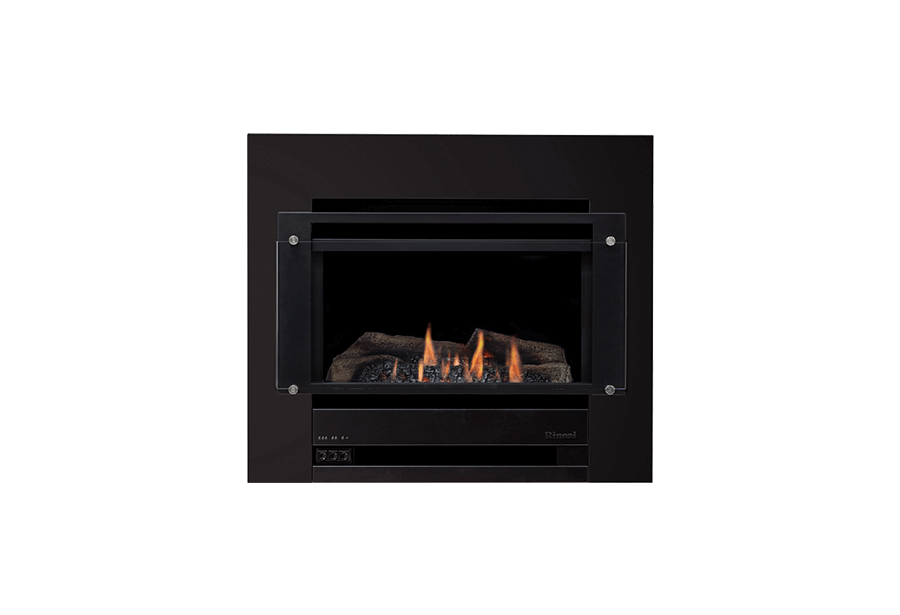

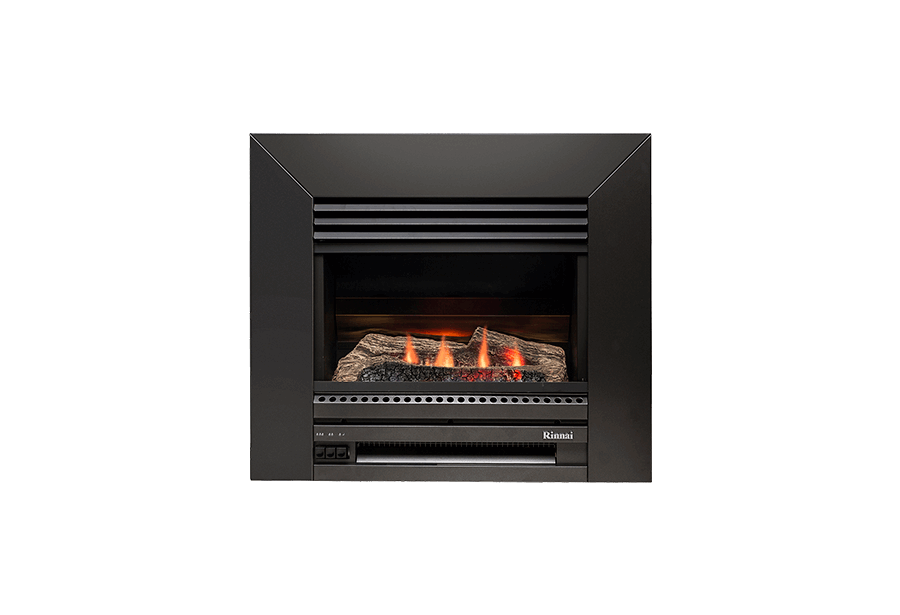

- Range of frame options to suit any living space
- 2-speed convection fan quickly and effectively disperses the heat
- Easy installation, shallow firebox will fit most existing fireplaces
- Operation is easy with push button controls
Product Details
Suitable for living rooms and open plan areas.
Please note that the Compact 2 has a robust fan which is audible, especially in smaller rooms. If the operating noise of the fire plays a significant factor in your purchase decision, we recommend viewing a working model.
Heating areas (up to)
- Upper North Island: 77 m2
- Central and lower North Island: 68 m2
- South Island: 50 m2
Installation consideration
The Neo draws air for combustion from the room. Adequate ventilation must be calculated by the gasfitter as per AS/NZS 5601.1.
Gas type
- Available for Natural Gas or LPG, please select from the dropdown
Technical Specifications
- Fan: Convection fan tangential 2-speed
- Flueing (not included in price):
- Mock chimney: Inner - 100 mm, outer - 150 mm. Appliance must be installed with a Rinnai flue system.
- Masonry: The Compact 2 must be installed with a Rinnai flexiliner flue - 100 mm
- Ignition: Continuous spark electronic ignition
- Safety devices: Flame failure thermocouple, overheat switch, fan delay, and power failure protection
- General clearances: The minimum clearances listed below are measured from the edge of the inner glass.
- Above - 300 mm
- Sides - 300 mm (includes side walls)
- In front - 1000 mm
Please note: This price includes the engine and frame, it does not include flueing.
