The Rinnai INFINITY N-Series are condensing gas continuous flow water heaters designed for commercial applications and high hot water demand residential installations.

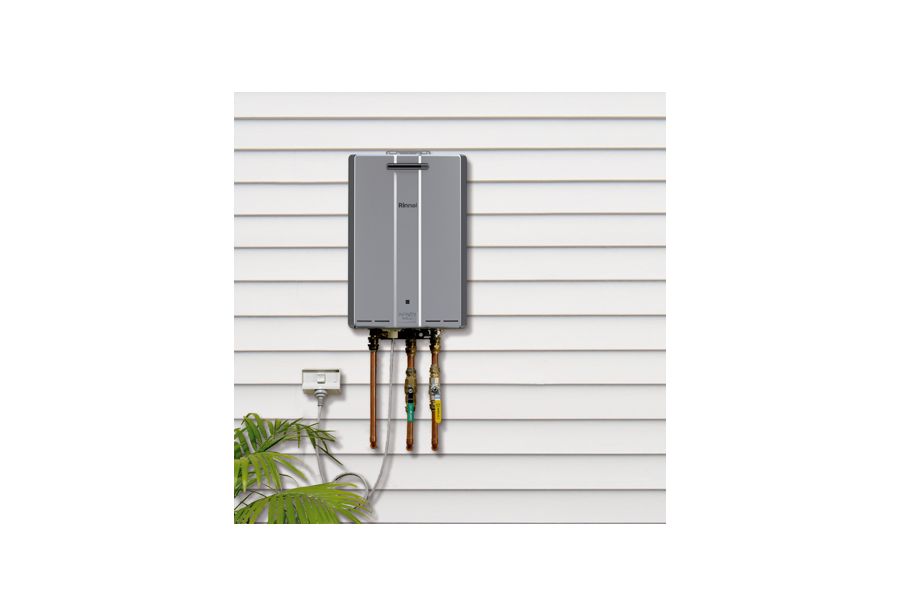

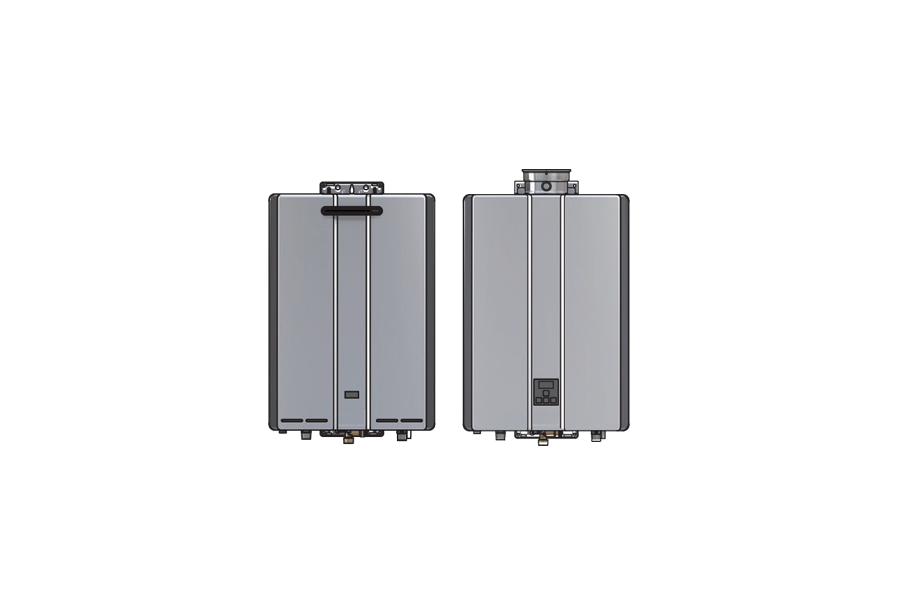

Available as an external unit (N56kWe) or an internal unit (N56kWi).
Features:
- Stainless steel heat exchanger and internal piping
- Inverted burner, burner cleaning no longer required
- Inbuilt control panel, parameters easily set
- Inbuilt temperature sensor
- Premix burner, no gas pressure setting required
- Low cost and easy electronic connection
- Powerful fan allows a lower cost common flue to be installed (available ex-stock)
Suitable for
- External commercial and residential applications (N56kWe external model only).
- Internal commercial and residential applications (N56kWi internal model only).
- Mains and medium pressure systems. Hard or acidic water will need to be treated to use this product.
Condensing technology
- Utilises a secondary heat exchanger to drive further thermal efficiency by extracting heat from combusted flue gases, making the N-Series models 97% efficient.
Not suitable
- as spa or swimming pool heater
- for hydronic applications
- for domestic ring main applications
Gas type
- Available for Natural Gas or LPG. Please select gas type from the drop down.
Technical Specifications
- Factory preset temperature:55°C
- Hot water capacity: 1.5-37 litres per minute. Nominal water capacity is 32 litres per minute at a 25°C rise (1920 L/h)
- Direct electronic ignition
- Frost protection is fitted as standard
- Safety devices
- Flame failure
- Boil-dry protection
- Overheat protection
- Fusible link
- Pressure relief valve
- Combustion fan RPM check
