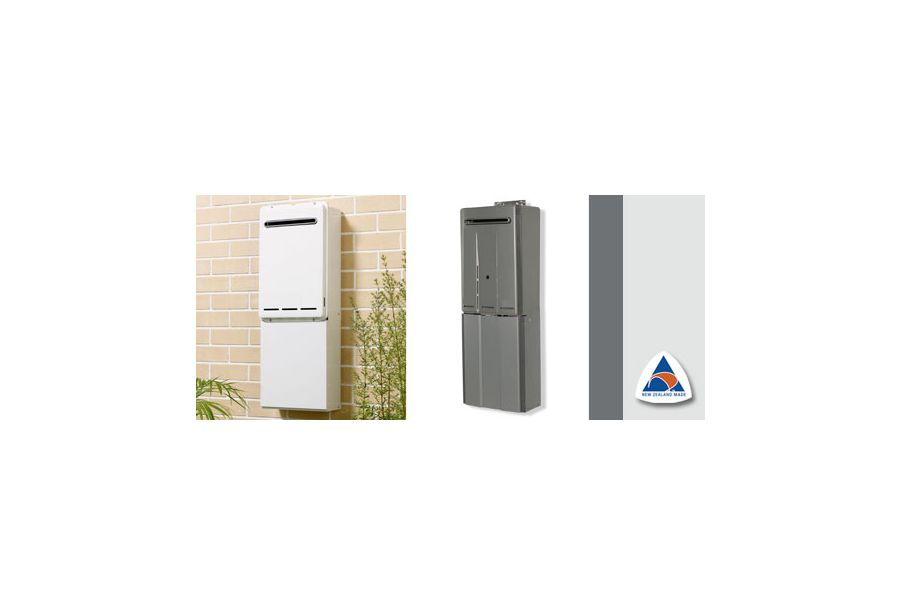

If you want a smooth clean finish to the installation, the Rinnai INFINITY pipe cover can be used to cover pipes, valves, and even an external power point.
The pipe cover kits vary in size and colour depending on the Rinnai INFINITY being installed.
The pipe cover is roughly the same width and depth of the water heater and conceals approximately 450 mm of pipework below the unit.
Dimensions
| Code | Suitable for | Colour | Dimensions |

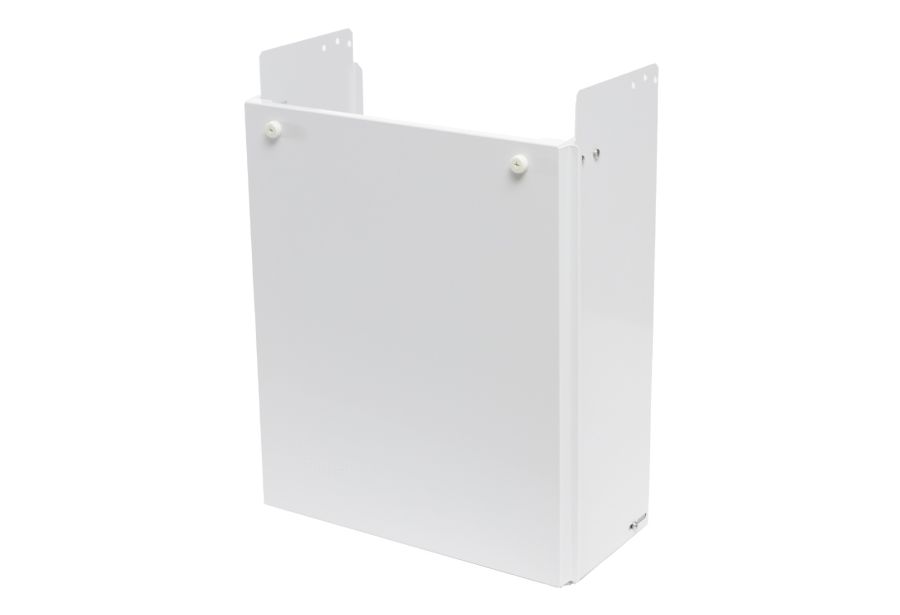

| R1385 | A-Series VT-Series* |
White | H-front: 394 mm, H-back: 438 mm W: 334 mm, D: 167mm |
| R1402SC | HD250 | Silver | H-front: 394 mm, H-back: 453 mm W: 438 mm, D: 230 mm |
| R1408SC | HD200/HDi200 | Silver | H-front: 394 mm, H-back: 448 mm W: 334 mm, D: 230 mm |
| R1415 | N-Series | Silver | H-front: 450 mm, H-back: 470 mm W: 465 mm, D: 243-254 mm |
| R1416 | EF26 | White | H-front: 450 mm, H-back: 496 mm W: 350 mm, D: 186 mm |
| R1417 | HD49 Series | Silver | H-front: 450 mm, H-back: 485 mm W: 355 mm, D: 218 mm (**available mid-2022**) |
